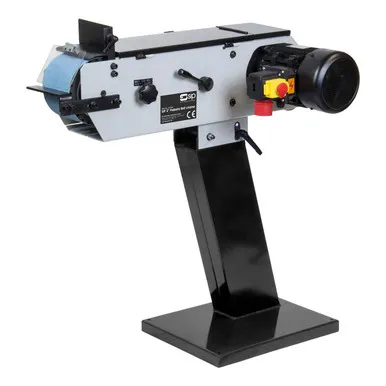

This 6" belt linisher from SIP is designed for trade and professional applications

The SIP 6" Belt Linisher easily helps to improve the flatness and uniform surfacing of a variety of different material lengths and sizes using a selection of adjustable mechanisms to match the set-up of the machine to the task at hand. Adjustable tool support offers accurate positioning of the workpiece and easy angle adjustment, while the linisher head tilt accommodates varying workpieces. Moreover, 3-point belt access on the wheel, platen top, and full platen increase versatility further.

Features:

• Heavy-duty construction with pedestal stand ideal for workshop requirements
• 3-point belt access; on the wheel, platen top, and full platen for a variety of needs
• Adjustable tool support and angles for accurate positioning of the workpiece
• Linishing head tilt to accommodate a variety of material lengths and sizes
• The quick belt release handle for fast belt changing via the easy-access side panel
• The belt tracking adjusting knob ensures the belt runs straight and true
• Adjustable eye protection and NVR switch for increased user safety
• Designed for trade and professional applications

Specification:

• Input Supply: 3-PHASE 400V
• Motor Power: 4hp (3kW)
• Belt Size: 2000mm x 150mm
• Belt Speed: 34mtr/sec
• Flat Grinding: 530mm
• Contact Wheel: 200mm x 150mm
• Steering Roller: 225mm x 150mm
• Working Height: 475mm - 1240mm

SKU: SIP-01949
